EFI SCAN -
SCANNER FOR OBD-I, MOBD TOYOTA & LEXUS VEHICLES Latest version 1.5 updated 22/02/2012 |
||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||
|
● Product code: ET1002 ● Origin: DTDAUTO ● Availability: In stock ● Rate:  ● Price: 142 $US |
|||||||||||||||||||||||||||||||
Click here for
price, shipping, payment |
|||||||||||||||||||||||||||||||
    |
|||||||||||||||||||||||||||||||
| ● FUNCTION | |||||||||||||||||||||||||||||||
|
- Read faults, give repair suggestions for engine and ABS such as: sensor systems, actuator, ECU, electronic fuel injection
(EFI), ignition, automatic transmission (AT), Anti-lock braking system
(ABS) - Better support for diesel vehicle - Support for reset ECU, erase fault codes have been stored in Engine, ABS - Support for reset period maintenance (MAINT) - Look up fault codes - Free and automatically updated the newest version (Auto live update function from version 1.5). |
|||||||||||||||||||||||||||||||
| ● APPLICATION | |||||||||||||||||||||||||||||||
|
- EFI Scan is used to determine faults in the engine system and ABS for Toyota and Lexus vehicles which are compliant with the special standard OBD-I, MOBD
(especially used for Toyota models which have 16-pin connector like OBD-II but not work with OBD-II Scantool)
- Engines: 15BT, 1AZ-XX, 1CD-FTV, 1E, 1FZ-FE, 1GR-FE, 1HD-XX, 1HZ, 1KD-FTV, 1KZ-XX, 1MZ-FE, 1RZ, 1SZ-FE, 1TR-FE, 1WZ, 1ZZ-FE, 2AD-TRB, 2AZ-FE, 2C-XX, 2E-XX, 2GR-FE, 2JZ-XX, 2KD-FTV, 2L-XX, 2RZ-XX, 2TR-FE, 2TZ-XX, 2UZ-FE, 2VZ-FE, 2S-E, 2ZZ-XX, 3C-TE, 3L, 3E-XX, 3MZ-FE, 3RZ-FE, 3S-XX, 3VZ-XX, 3ZZ-FE, 4A-XX, 4E-FE, 4ZZ-FE, 5E-FE, 5K, 5S-FE, 5VZ-FE, 7A-FE, 7M-XX, 22R-XX... - Models: Avensis, Avalon, Camry, Carina, Corolla, Crown, Corolla, Celica, Cressida, Dyna, Zace, Altis, Innova, Sienta, Supra, Harrier, Prado, Previa, Picnic/Sports Van, Land Cruiser, Hilux, Hiace, Fortuner, Rav4, Yaris, Starlet, Supra, Paseo, LiteAce, 4-Runner, Tacoma, Tercel, MR-II,... and all other models. (Reference in car list) - EFI Scan can be used: + As a repairing-tool for workshops, or a training-tool for vocational schools + Connect to trainer for EFI, ABS system + As a technical tester for cars |
|||||||||||||||||||||||||||||||
● DOWNLOAD EFI SCAN SOFTWARE (Latest version) |
|||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||
| ● ADVANTAGES | |||||||||||||||||||||||||||||||
| - New, efficient, accurate and reliable solution
- Low price - Language: English or Vietnamese - Compatible with vehicles on the markets of ASIAN, AFRICA, EU, US... - Simple to use - Update databases and upgrade new software versions for free - Direct consultation and technical support - 12 month warranty, service on demand |
|||||||||||||||||||||||||||||||

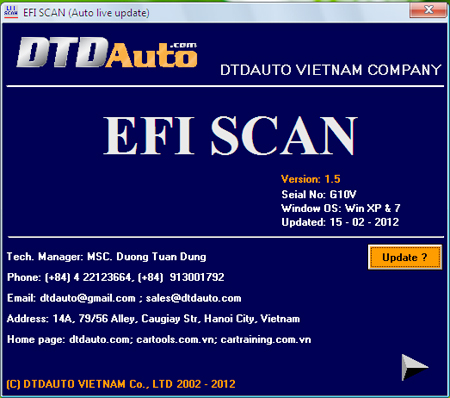

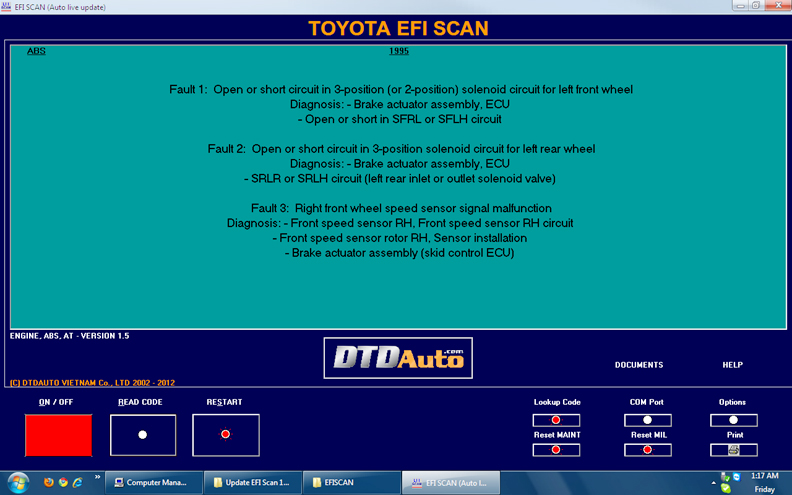

 EFI Scan Interface - Supported updates automatically  EFI Scan Interface - Faults of engine system  EFI Scan Interface - Faults of ABS system  EFI Scan Interface - Option  EFI Scan Interface - Looking fault code |
|||||||||||||||||||||||||||||||
| ● PACKAGE | |||||||||||||||||||||||||||||||
| - 01 electronic signal converter
- 01 CD of the latest version of EFI Scan software - 01 COM cable (to connect PC to vehicles) - 01 USB/COM cable (to connect PC to vehicles) - 01 guide book - 01 cover |
|||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||
| ● TECHNICAL DETAILS | |||||||||||||||||||||||||||||||
| 1. PC | |||||||||||||||||||||||||||||||
|
- Operation System: Win XP, Win 7
- Processor: 586 MHz or higher - RAM: 32 MB or higher - Screen resolution: 800 by 600 pixels or higher - COM port or USB port |
|||||||||||||||||||||||||||||||
| 2. Diagram of wiring connection | |||||||||||||||||||||||||||||||
| A. Locations of Diagnostic Link Connector (DLC) and ECU | |||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||
| B. Connecting to connector for diagnosing engine system | |||||||||||||||||||||||||||||||
| With DLC1 | |||||||||||||||||||||||||||||||

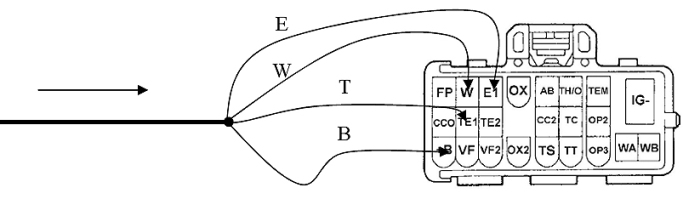

| - Case 1: Pin W is available in DLC | |||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||

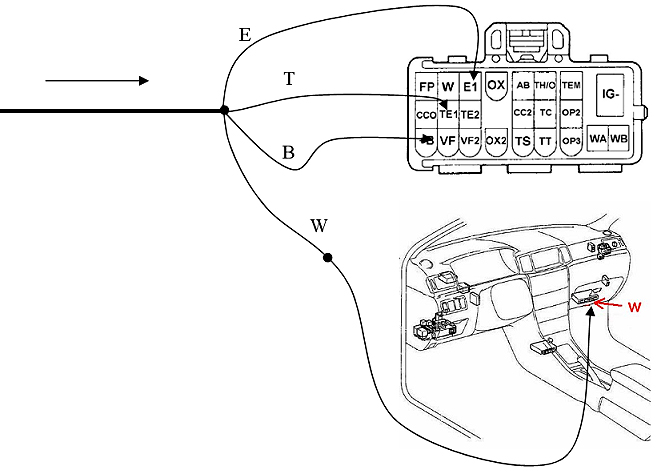

| - Case 2: Pin W is unavailable in DLC | |||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||
| Notes: Use a W long line, insert into W pin of ECU without unplugging any data cable | |||||||||||||||||||||||||||||||
| With DLC1 & DLC2 | |||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||
| With DLC3 | |||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||
| Notes: Use a W long line, insert into W pin of ECU without unplugging any data cable | |||||||||||||||||||||||||||||||
| C. Connecting to connector for diagnosing ABS | |||||||||||||||||||||||||||||||
| With DLC1 | |||||||||||||||||||||||||||||||
| Notes: Remove the Wa-Wb jumper | |||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||

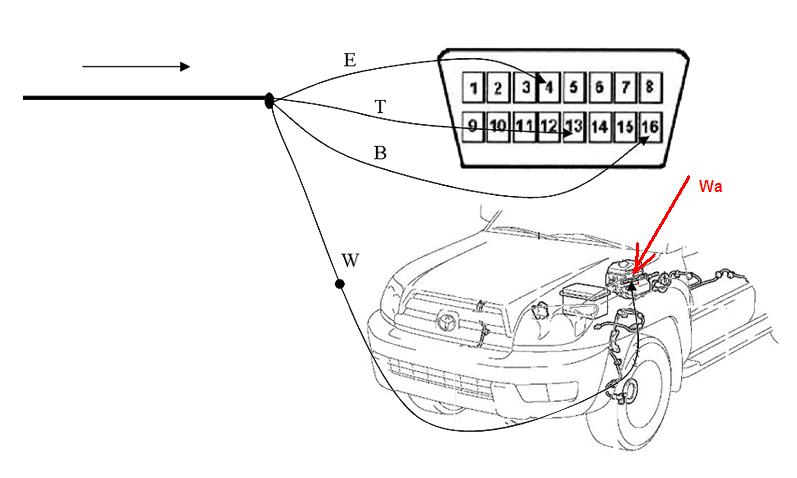

| With DLC3 | |||||||||||||||||||||||||||||||
| - Case 1: | |||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||
| - Case 2: | |||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||
| Notes: Select the reading ABS; use a W long line; insert into W pin of ECU without unplugging any data cable | |||||||||||||||||||||||||||||||
| 3. Photos of some positions of W pin in some engines | |||||||||||||||||||||||||||||||

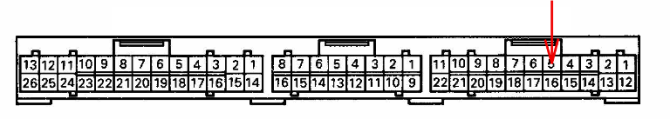

| - 3S-FE
Engine (COROLLA, CAMRY 91 - 2001) Notes: This is located on the ECU (male connector) |
|||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||
| - 1TR-FE
Engine (INNOVA G/J và HIACE)
Notes: This is located on the ECU (female connector) |
|||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||

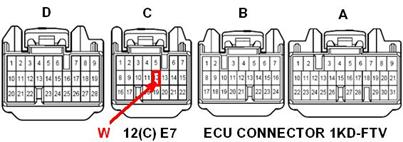

| - 1KD-FTV Diesel
Engine (PRADO, HILUX, LAND CRUISER) Notes: This is located on ECU connector (female connector) |
|||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||

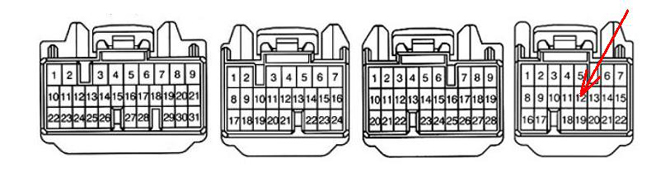

| - 1KZ-TE Diesel
Engine (HILUX, LAND CRUISER) Notes: This is located on ECU connector (female connector) |
|||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||
| - 3RZ-FE Diesel
Engine (PRADO, HILUX, LAND CRUISER) Notes: This is located on the ECU connector (female connector) |
|||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||
| Look up W & Wa pin location of other vehicle | |||||||||||||||||||||||||||||||

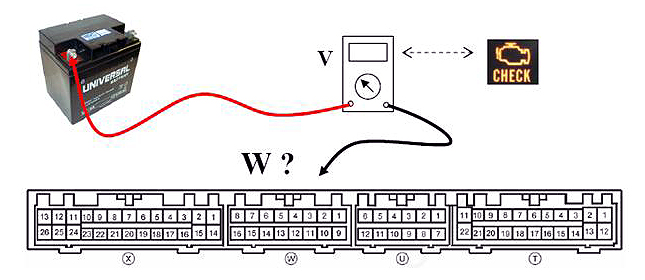

| 4. How to get W pin in any kinds of engine with Voltmeter | |||||||||||||||||||||||||||||||
|
Step 1: Prepare a DC voltage meter (DC voltmeter) with the metering band of 20V DC. Connecting positive red stick (+) of the fixed voltmeter to positive pole of 12V battery
(or to the nearest source which is positive 12V).
(Warning: You must set voltage mode for the meter, otherwise it will not work and will be dangerous for your ECU) |
|||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||
|
Step 2: Connect EFI SCAN to 16-pin (or 17 square pin) connector in the vehicle
(Except pin W). Turn ignition on and start EFI SCAN software until "Ready" report is on the screen. Step 3: Try to connect black stick (-) of the voltmeter to all pins of ECU alternately. The pin at which the Voltmeter is flashing same as the Check Light in the vehicle is pin W. |
|||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||
| Step 4: Take a note of this position for the other vehicles, which have engine code similar. | |||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||
| ● SOME EMAIL CONFIRM FROM CUSTOMERS | |||||||||||||||||||||||||||||||
| - Email sent from Indonesia customer...
Subject: Good Product Dear Duong; Thank's for Your Product that is Good Product and I already try To Toyota Innova and Avanza here that is running well, also I already read all about Your Product instruction. I hope somebody the servica car here want to order and use Your Product, so I am waiting the order here and always demo Your Product here so Please if somebody from Jakarta Indonesia contact direct to You Please inform for the demo can contact me and also can order from me. Regard's - Email sent from Australia Customer... Thank you. I received the EFI scan tool. I tried it and it works fine on the Australian Lexus. Excellent product and service thanks. Regards Ray Pitts |
|||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||
| ● QUESTION AND ANSWER | |||||||||||||||||||||||||||||||
| 1. Question: What are functions of EFI Scan? | |||||||||||||||||||||||||||||||
|
Answer: EFI Scan
is used to read/diagnose faults, give repair suggestions for
engines, sensor systems, ECU, Electronic Fuel Injection
(EFI), ignition, ABS equipped in TOYOTA, LEXUS and
SCION vehicles not compliant with OBD-II.
(Reference
in car list)
If you want to buy a professional product with more specialized function, click here to view details |
|||||||||||||||||||||||||||||||
| 2. Question: What are advantages of EFI SCAN? | |||||||||||||||||||||||||||||||
|
Answer: - New simple efficient solution (PC-based with a Win7, WinXP computer) - Low price - Support more than 200 basic/advanced fault codes of the engine system and ABS - Display (easy-to-understand) information of faults and repair suggestion - Simple for users - Update database and upgrade new version is free - Provide consultation and technology support - Hardware warranty is 12 months |
|||||||||||||||||||||||||||||||
| 3. Question: I want to connect EFI SCAN to Toyota vehicles trainer. Is that OK? What kinds of accessories do I need? | |||||||||||||||||||||||||||||||
| Answer: Absolutely you can. Just EFI SCAN is OK, no more! | |||||||||||||||||||||||||||||||
| 4. Question: Will EFI SCAN support read code direct by high speed serial data from diagnostic connector? | |||||||||||||||||||||||||||||||
| Answer: No, EFI Scan is a low cost product, it use slow serial MIL data. If you want to buy a professional scanner, which able to Read/Clear fault code for all of electronic control system on the cars with MOBD serial data from DLC, You should buy an our JK Scanner product but price is more expensive than EFI SCAN. Click here for details about JK SCANNER product | |||||||||||||||||||||||||||||||
| 5. Question: Why my EFI SCAN is not show position of W pin when click on VIEW button? | |||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||
| Answer: Maybe, you have not 02 data folders are “W_Engine” and “Wa_ABS” in C:\Program Files\EFISCAN. Please check it again. You can download 02 folders from “Relevant document Item” of EFI SCAN page then paste to C:\Program Files\EFISCAN. Other way, you can download it from here. | |||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||
| 6. Question: What kinds of vehicles is EFI SCAN compatible with? | |||||||||||||||||||||||||||||||
|
Answer: EFI SCAN is used for TOYOTA, LEXUS
and SCION vehicles, which are not OBD-II compliant and have rectangle connectors on the engine
(DLC1) or circular connectors below the steering wheel or trapezium connectors, which look like 16-pin OBD-II connectors
(DLC3). However, if your vehicle has a trapezium 16-pin connector, then there are 2 following cases:
- If the 13th pin is used, so your vehicle is not OBD-II compliant. Therefore, your vehicle can work well with EFI SCAN - If the 13th pin is not used, so your vehicle is OBD-II compliant. Therefore, your vehicle can work well with OBD-II Scantool which we have introduced in this Website - Vehicles after 2007 (with or without the 13th pin) are all OBD-II compliant |
|||||||||||||||||||||||||||||||
| 7. Question: I want to buy EFI SCAN. What should I do? | |||||||||||||||||||||||||||||||
| Answer: Please contact to us by phone, e-mail or order through our Website www.dtdauto.com, www.cartools.com.vn, www.cartraining.com.vn. | |||||||||||||||||||||||||||||||
| 8. Question: What is the warranty and support of EFI SCAN? | |||||||||||||||||||||||||||||||
| Answer: EFI SCAN has 12-month warranty and we are always glad to provide you the best support whenever you want. | |||||||||||||||||||||||||||||||
| 9. Question: Why does DTDAuto advise customers to have EFI SCAN? Is it really necessary? | |||||||||||||||||||||||||||||||
| Answer: This tool is really a good friend of people who have work relating to vehicles. It is the product combining IT with Automotive Technology and human intelligence. With EFI SCAN, your work will be much simpler, easier, faster and more efficient. | |||||||||||||||||||||||||||||||
| 10. Question: Can EFI SCAN read all faults? Why? | |||||||||||||||||||||||||||||||
| Answer: Reading faults all depends on sensor systems and fault storage in ECU. It is very important and it depends on models and price of vehicles, it doesn’t depend on diagnostic equipment. Therefore, EFI SCAN can read fault codes which the Electronic Control System and ECU support and store in the ECU memory. They are mainly faults of systems relating to electronic and supported by sensors. If the Check Engine Light is ON, EFI SCAN can read faults. Otherwise, EFI SCAN can or can’t read faults. | |||||||||||||||||||||||||||||||
| 11. Question: If my vehicle is OBD-II compliant, then what kind of tools should I buy? Where? | |||||||||||||||||||||||||||||||
| Answer: If your vehicle is OBD-II compliant, so you should use OBD-II Scantool we have introduced in this Website. Click here to see! | |||||||||||||||||||||||||||||||
| 12. Question: When I want technology support, who can I contact to? | |||||||||||||||||||||||||||||||
| Answer: Please contact to Master. Duong Tuan Dung, Institute of Physics, Institute of Science & Technology, Vietnam (author of products) | |||||||||||||||||||||||||||||||
| 13. Question: How to know program installation is correct if I don’t have vehicles to check? | |||||||||||||||||||||||||||||||
| Answer: After installing program by following the instructions, if you don’t have vehicles to check, you can do like this: Connect B-pin of a cable to +12V-pole of a battery and E-pin to 0V-pole. Then, use the computer software to check. If “Ready…” shows, then your installation finishes. | |||||||||||||||||||||||||||||||
| 14. Question: I don’t know how to install USB cable to use for a laptop. Can you hep me? | |||||||||||||||||||||||||||||||
| Answer: You can click here to watch instructions. | |||||||||||||||||||||||||||||||
| 15. Question: I have read information of Technical information of EFI SCAN. There is no plug to connect to vehicles, then how does EFI SCAN connect to vehicles? | |||||||||||||||||||||||||||||||
| Answer: EFI SCAN uses single-plugs and we have to plug them to the connector in the vehicles (according to a diagram attacked to products). Therefore, it will be OK with any kind of connector. In some cases, positions of pins are not at the same place (Ex: in ECU). To get detailed information, you can read in Technical information of EFI SCAN. | |||||||||||||||||||||||||||||||
| 16. Question: I installed software. However, I don’t have broken-down vehicles to check that EFI SCAN installation is complete or not and to test diagnostic ability of EFI SCAN. So what should I do? | |||||||||||||||||||||||||||||||
|
Answer: Very simple. You can use a Toyota vehicle, which is working normally and follow these steps:
1. Start the engine and unplug 1 of 2 plugs of some sensors (breaking a sensor-line) 2. Turn off the ignition key and connect EFI SCAN to your vehicle 3. Turn on the ignition key, start EFI SCAN software and read faults (wait 5-30 seconds) 4. Compare fault-results and repair suggestion displayed on the screen with faults you made on purpose before. (Perhaps EFI SCAN reads more faults than you made. This is very common. Maybe they are faults which weren’t cleared in previous diagnosis and stored in ECU) 5. Re-plug to the connector, unplug the Battery wire (or ECU fuse) about 30 minutes or more to clear faults and after that re-plug it. 6. Check all again with EFI SCAN equipment 7. For more detailed information, you can contact to us. |
|||||||||||||||||||||||||||||||
| 17. Question: What are break-downs which often happen to EFI SCAN? How to repair? | |||||||||||||||||||||||||||||||
| Answer: When you say “break-downs”, that is not completely right. All depends on how you use tools. The most common case is after a while of using, tools are attached by computer virus. Therefore, you must reinstall Windows and then install software EFI SCAN in your computer but don’t change the default connection-port in software to make it suitable for a current port in your computer. To solve this problem, just choose a connection-port and install by following the guidebook. | |||||||||||||||||||||||||||||||
| 18. Question: Question: My computer uses Windows 7. I don’t see any problem during setup process. But after I enter activate code, I receive a message: “Run time error ‘75’ - Path/file access error”. Setup process is then exited. Please show me how to fix this problem? Thank you! | |||||||||||||||||||||||||||||||
|
Answer:
This issue is related to setup process of EFI scan on Windows 7. Please follow these steps to solve it:
Step 1: Start your Windows 7 in “Safe mode” (If you don’t know how to do it, please click here >>) Step 2: Run EFI scan software Step 3: Enter activate code. The software should accept the code and display user menu. Close EFI scan software. Step 4: Restart Windows 7 and run it in normal mode. EFI scan software should run normally now! |
|||||||||||||||||||||||||||||||
